Solinox Flue Systems
The part of the fireplace nobody sees and everybody needs
Solinox is the flue system we run with every wood-burning fireplace we install. All 304 stainless steel, in single and double wall, from 130 mm through to 400 mm.
Single wall is used inside the room where the pipe is visible; double wall is used through ceilings, roof spaces and outside, because the air gap keeps the outer surface cool enough to pass safely through a timber structure. Getting the transition right is the single most important part of a safe installation — and the reason we do not sell flue over the counter without knowing the build.
The Range
Each of these is a family rather than a single product — sizes and finishes are chosen when we spec the build. Prices start at the smallest, plainest configuration of a family and climb with size and finish.

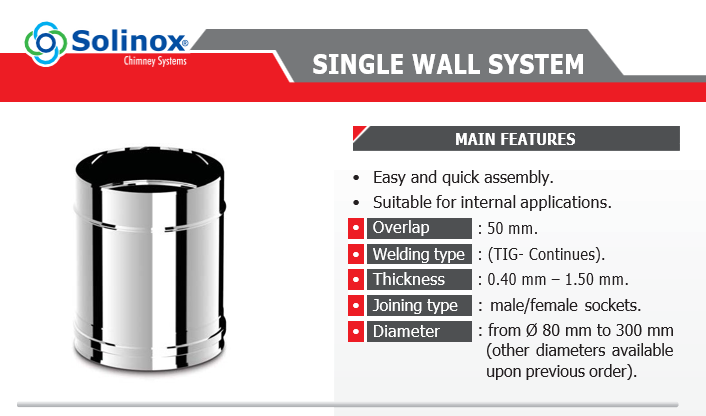

Single Wall Pipe
From R 640per 1 m length
304 stainless, for the visible run inside the room. Supplied in 500 mm and 1 m lengths with a locking band included, plus 45° and 90° bends.

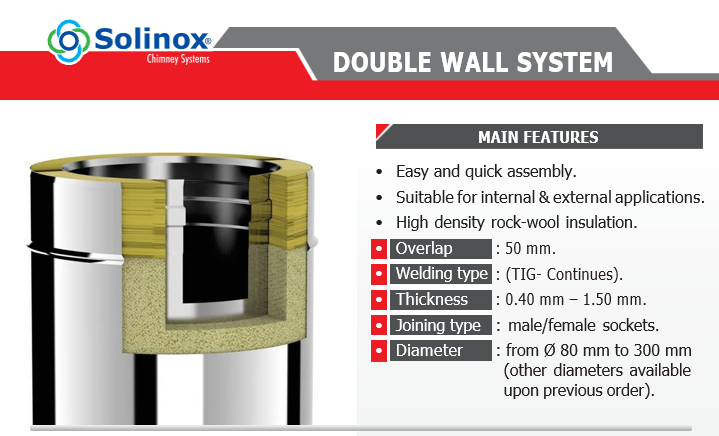

Double Wall Pipe
From R 1 880per 1 m length
Insulated twin-wall for ceiling penetrations, roof spaces and external runs. Same lengths and bends, plus end-cap flues in 500 mm and 1 m.
Supplier list price for the unit, incl VAT — flue, fascia and installation are quoted separately and prices are subject to change. Talk to VlamHaus for a supplied-and-installed figure. March 2026 list.
Sizes & Options
What gets specified per project. Bring us the room and we'll narrow this down to one build.
- 130 mm — single and double wall
- 150 mm — single and double wall
- 180 mm — single and double wall
- 230 mm — double wall
- 400 mm — single wall
- 500 mm and 1 m pipe lengths, locking band included
- 45° and 90° bends
- Anti-wind cowls
- Ceiling plates — flat, 30° and 45°
- Wall brackets at 110, 210 and 410 mm standoff
- Roof seals and end-cap flues
- 304 stainless steel as standard
- Black flue range across all diameters
- Spray finishing available on 130–400 mm pipes
- Chimney cleaning kits
- Wall pipe brackets and adapters
Let's spec your flues build
Send us a photo of the space on WhatsApp. We'll come back with the right configuration and a supplied-and-installed price.
Chat With Us on WhatsApp
